JA Solar Panel JAM72D40-595/MB

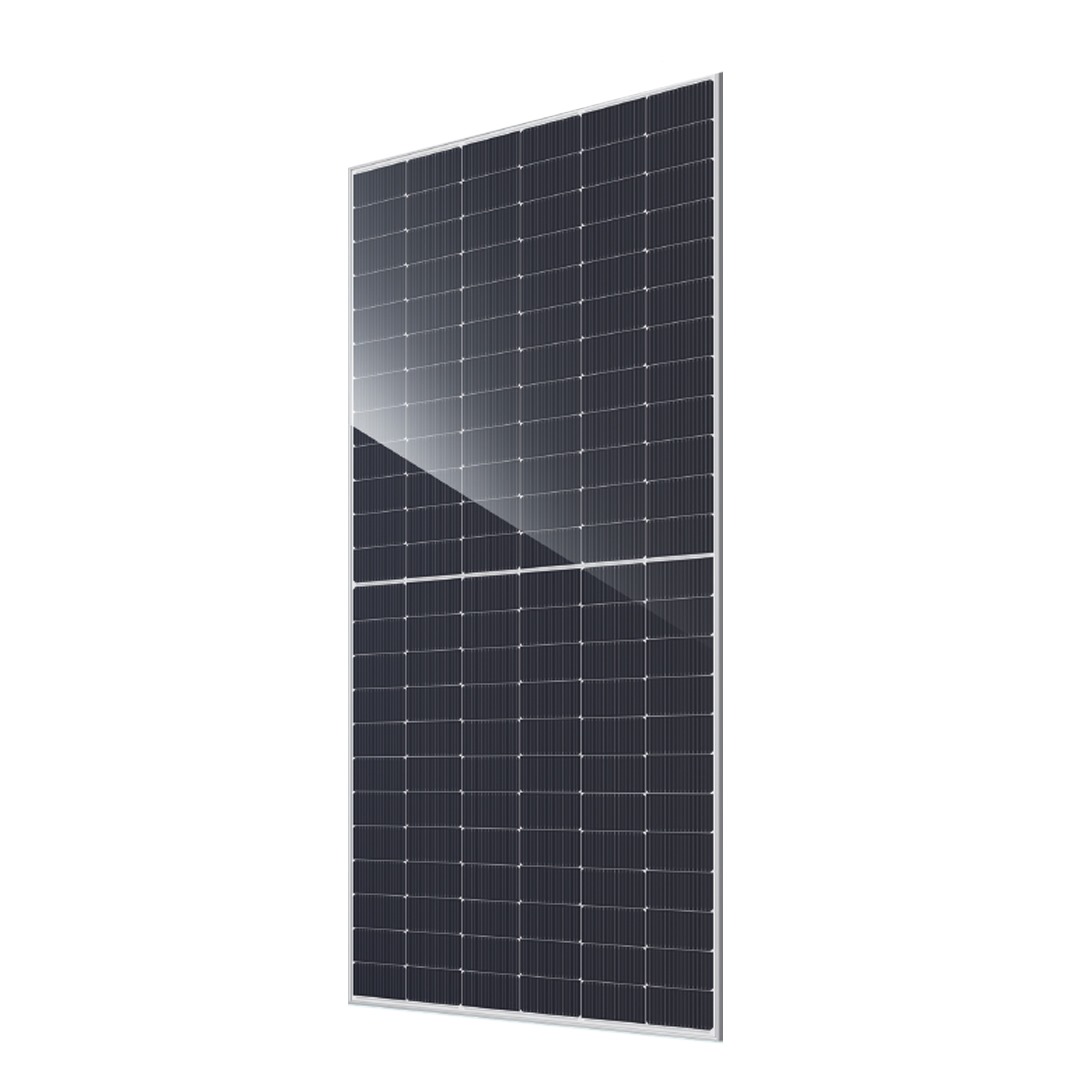

Solar JAM72D40-595/MB – 595W Bifacial Solar Panel
Power: 595W | MB Series | Deep Blue 4.0 Pro Technology

JA Solar presents the high-efficiency JAM72D40-595/MB solar panel, designed for maximum performance and reliability. This n-type monocrystalline panel with bifacial technology provides increased energy production, lower temperature coefficient and excellent efficiency even in low light.

Why choose JAM72D40-595/MB

✔ Excellent efficiency thanks to Deep Blue 4.0 Pro technology
✔ Double-sided design for additional energy output
✔ Resistance to weather conditions and mechanical stress
✔ Long-term warranty and slow power degradation

This panel is an ideal solution for industrial, commercial, and large-scale solar projects that require maximum performance and durability.

Key features:

High Power and Efficiency:

• Rated Power: 595W
• Modular efficiency: 23.0%
• Additional power up to 10% on the back side (bifacial)
• Better temperature coefficient and better response in low light

Durability and reliability:

• Double glazing for better strength and durability
• IP68 protected connection cable box with 3 diodes
• Load Endurance: 5400 Pa (Front Side), 2400 Pa (Back Side)

Guarantees:

• 12 years product warranty
• 30 years linear performance guarantee (only 0.4% annual degradation)

Optimal operating conditions:

1. Maximum system voltage: 1500V DC
2. Operating temperature range: -40°C to +85°C
3. NOCT (Nominal Cell Temperature): 45±2°C


   Technical specifications:

   • • Cell Type: Monocrystalline n-Bycium++ (16BB)
     • Dimensions: 2278 × 1134 × 30 mm
     • Weight: 31.8 kg
     • Connecting cables: 4mm² (IEC), 12 AWG (UL)
     • Connector: QC 4.10-35I / MC4-EVO2A
     • We inform you that despite our efforts, we cannot guarantee that the published information and photos do not contain inaccuracies or errors
