Hybrid three-phase inverter Deye 50KW

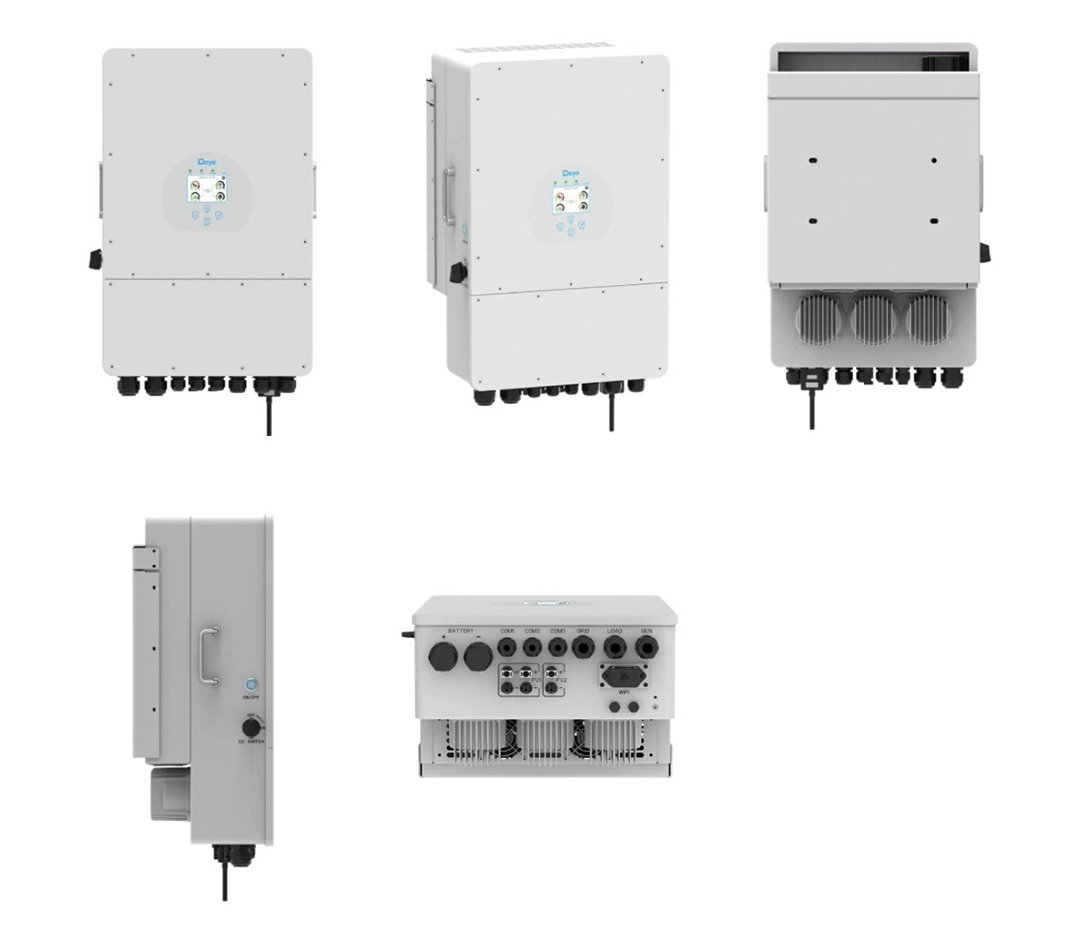

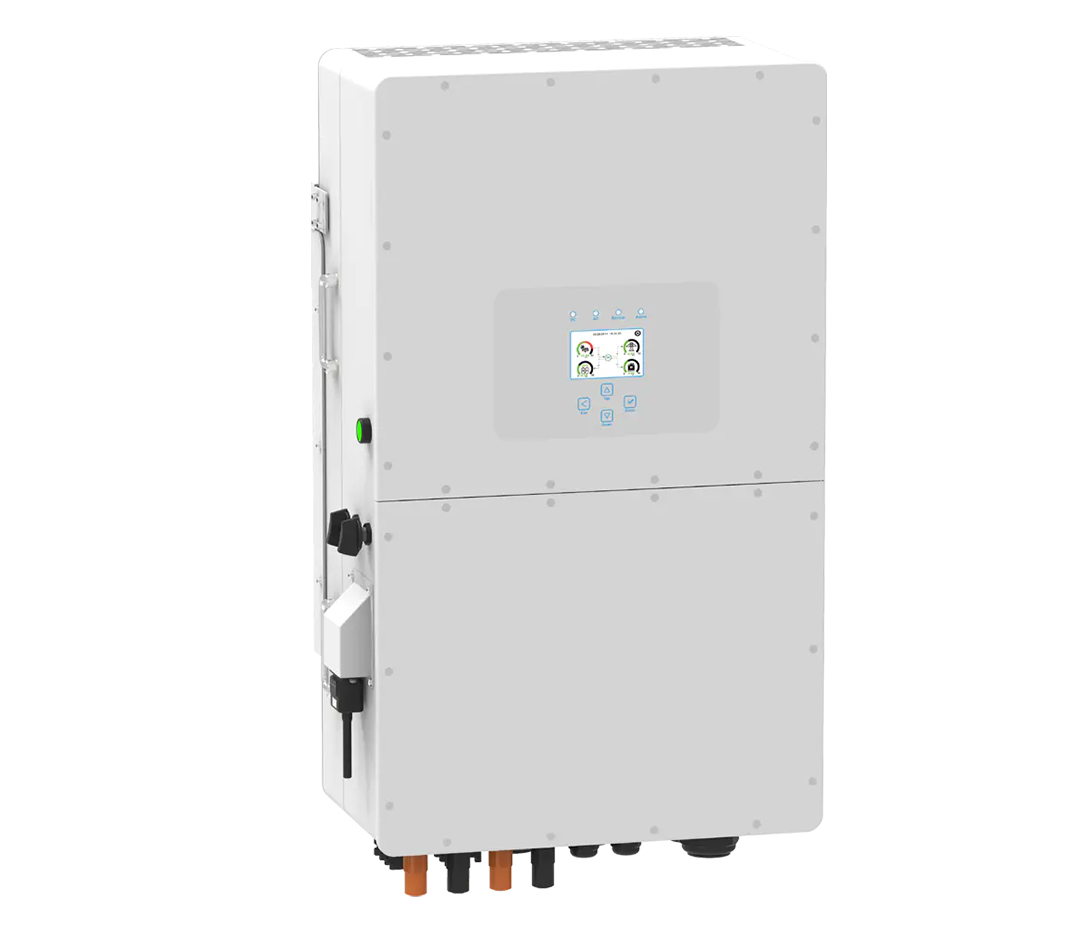

DEYE Three Phase 50KW High Voltage Hybrid Inverter

Detailed description:
The DEYE Three Phase 50KW High Voltage Hybrid Inverter is a highly efficient and reliable inverter designed for integration into solar and hybrid power systems. This inverter offers a plethora of features and benefits that make it an ideal choice for both home and industrial applications.
Characteristics:
• Rated power: 50KW, which allows efficient management of large solar systems.
• Input voltage (DC): Maximum voltage of 1000V, which ensures high compatibility with different types of solar panels.
• Operating Voltage Range (DC): From 180V to 900V, which ensures stable operation under different input voltage conditions.
•Maximum DC input current: 52A (26A per MPPT tracker), ensuring high efficiency in energy conversion.
• Number of MPPT trackers: 4, which allows optimal use of energy from different solar panels.
• Output voltage (AC): Three-phase output voltage with options of 220/380V, 230/400V, 240/415V, suitable for various applications.
• Output frequency (AC): 50/60Hz, which ensures compatibility with various electrical systems around the world.
•Power factor: >0.99, guaranteeing highly efficient operation and minimal losses.
• Protection class: IP65, which provides high resistance to dust and water, suitable for outdoor and indoor installation.
• Operating temperature range: -25°C to +60°C, allowing stable operation in extreme conditions.
• Cooling: Natural cooling that ensures quiet and silent operation.
•Maximum efficiency: 98.4%, which guarantees minimal energy conversion losses.
• Euro efficiency: 97.8%, ensuring high efficiency when working in European conditions.
• Dimensions: 840 x 660 x 278 mm
•Weight: 90 kg
• Warranty: 10 years, ensuring longevity and reliability of the system.
Applications:
This inverter is suitable for a wide range of applications, including:

1.Home Solar Systems: Provides reliability and efficiency for home solar installations.
2.Industrial Solar Systems: Ideal for larger installations requiring high power and reliability.
3.Hybrid Power Systems: Supports integration with energy storage, which allows for maximum use of generated energy and provides backup power in the event of a power outage.
4.Offgrid systems: Thanks to its hybrid capabilities, this inverter can work in offgrid applications, providing energy independence.

Additional features:

•Wi-Fi Support: For easy monitoring and management of the system over the Internet, allowing remote monitoring of system performance and status.
• Modular Design: Allows for easy expansion and upgrade of the system, which is ideal for future power increase needs.
• Silent operation: Thanks to natural cooling, the inverter works almost silently, making it suitable for installations in residential areas.
• Surge and overload protection: Ensures the reliability and safety of the installation, protecting the equipment from damage under extreme conditions.
•Integrated monitoring and management: Ability to monitor performance and adjust parameters through a mobile app or web interface.

This inverter offers a high protection rating, high efficiency, and flexible application options, making it an ideal choice for a variety of energy solutions.
