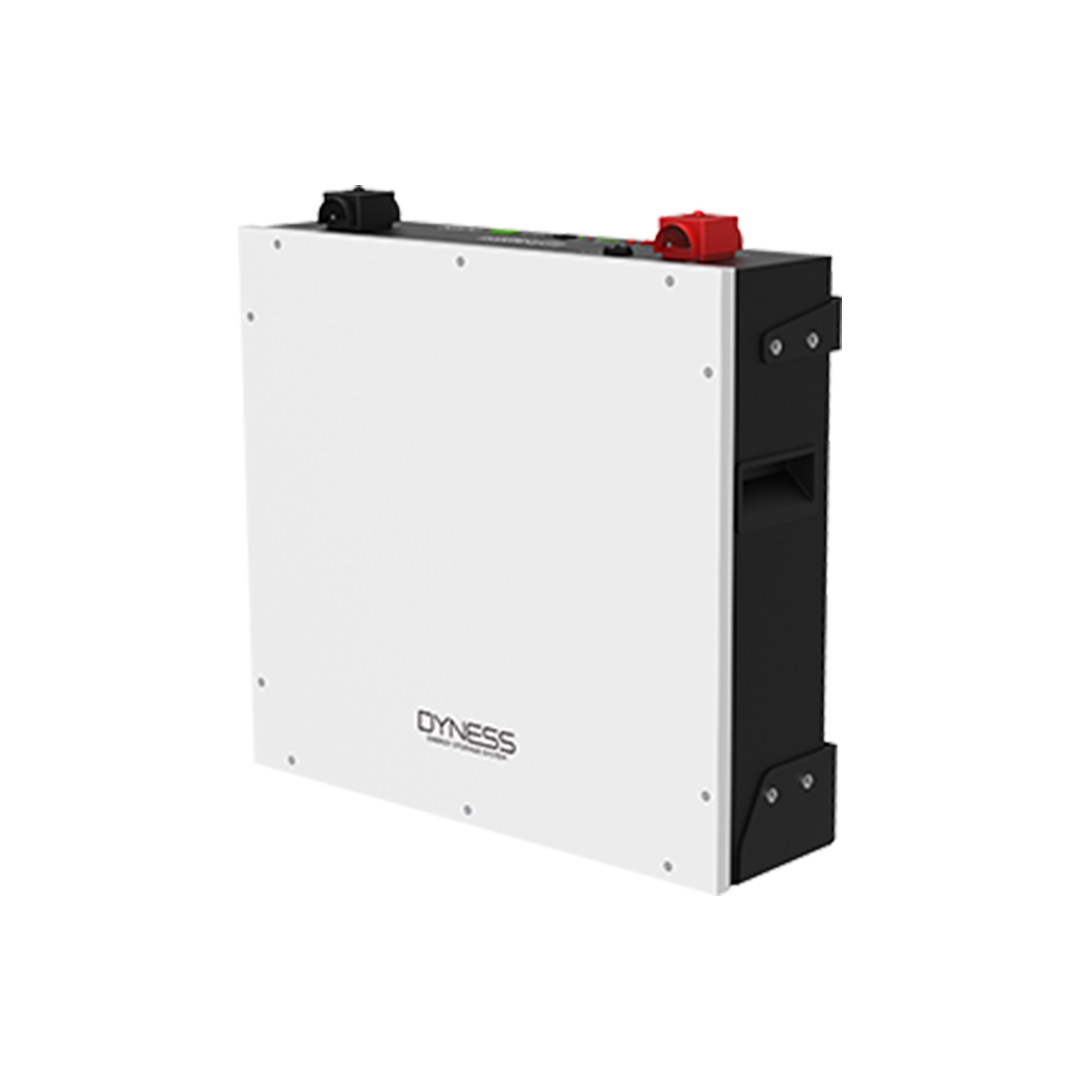

DYNESS DL5.0C Low Voltage LiFePO4 Battery 5.12 kWh 100 Ah 51.2V IP20

Dyness DL5.0C is a low-voltage (LV) lithium iron phosphate (LiFePO4) battery designed for residential and commercial power systems. With a capacity of 5.12 kWh, built-in Wi-Fi communication and the ability to connect up to 50 modules in parallel, it provides a flexible and reliable energy storage solution. It includes a heating system, which makes it suitable for cold climates.

Main characteristics:

✅ High efficiency and reliability:

Lithium Iron Phosphate (LiFePO4) Technology – Long Life and Increased Safety
Over 6000 charge-discharge cycles at 90% DOD
Built-in BMS (Battery Management System) for cell monitoring and balance

✅ Flexible and scalable system:

Ability to connect up to 50 modules
in parallel Compatible with leading inverters: SMA, Victron, Goodwe, Sungrow, Solis, SAJ and others

✅ Exceptional efficiency:

Rated Energy: 5.12 kWh
Rated Capacity: 100 Ah
Rated Voltage: 51.2V
Depth of Discharge (DOD): 90%

✅ High power and fast charging:

Maximum Charge/Discharge Current: 100A
Operating Voltage: 40 – 58.4V

✅ Compact and easy to install:

Dimensions: 480 × 450 × 132 mm
Weight: 38 kg
IP20 protection – suitable for indoor installation
Easy-Install design for quick and easy installation

✅ Advanced communication and monitoring:

Built-in Wi-Fi for remote monitoring
Supported interfaces: CAN/RS485
Mobile app to monitor battery status

✅ Heating function for cold climates:

Built-in heating for safe operation at low temperatures
Temperature range when charging: 0~55°C
Temperature range when discharging: -20~55°C

✅ Safety certifications:

UN38.3, CE-EMC, IEC62040, IEC62619, GOST-R, UKCA, CEC Accredited, CEI-021

Advantages of DYNESS DL5.0C Battery Module:

High reliability and safety with LiFePO4 cells
Easy scalability – up to 50 batteries in parallel
Compact design for quick installation
Built-in Wi-Fi communication for easy monitoring
Integrated heating system for optimal operation in cold conditions
Applications:

Residential & Commercial Energy Systems
Solar Hybrid & Off-grid Systems
Backup Power & UPS Solutions
Cold Climate
Applications Conclusion:

Dyness DL5.0C is an innovative, high-efficiency and reliable energy storage solution, providing flexibility, ease of installation and security. With built-in Wi-Fi, a BMS system, and a heating function, this battery is ideal for smart energy solutions in both home and business.

DATASHEETDL5.0CdatasheetEN2024.12.26
CompatibilityDyness_Inversores_Compatibles
Installation Guide Dyness_DL5-0C_Manual
Certificates:DL3.6 & DL5.0 62619 Cert 64.280.23.60138.01
DL5.0C&DL5.0X 62619 CERT 64.280.23.60137.02
DL5.0C&DL5.0X 62619 CERT 64.280.23.60137.02-1
